Heat Resistant Rubber Belt Conveyor For Coal Mining Industry
Description of Conveyor Belt:
The heat resistant rubber belt conveyor with large conveying capacity for loading and unloading is a kind of continuous mechanical handing equipment with high efficiency, good safety and good mobility. Mainly used for short-distance transport, handing of bulk material and the product one-piece weight less 100kg on loading and unloading stations which are often changed, such as the port, terminal, station, coal yard, warehouse, building site, sand quarry, farm and so on. It can be divided into lift and not lift type, the running of belt is driven by electric-roller, and the whole lifting and running are non-motorized.

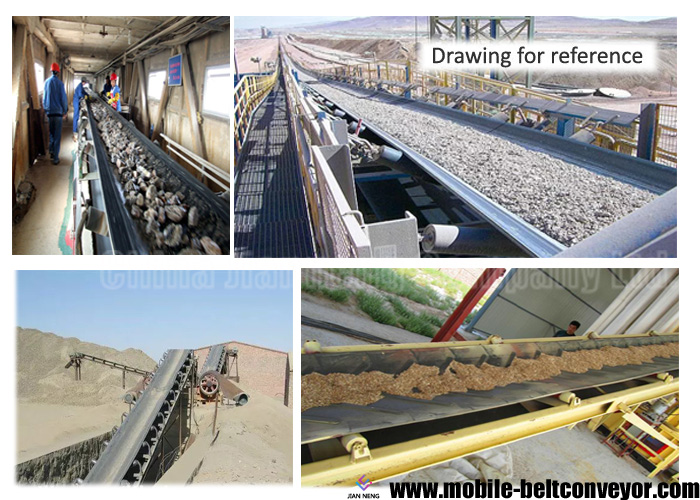

Coal Mining Industry Belt Conveyor Structure and Application :
Conveyor Belt System is widely used in mining, metallurgy, coal and other departments to transport loose materials or items into. in accordance with the requirements of transmission process ,the conveyor can be used as a single transmission ,also can be more than one portfolio or the composition with other transmission equipment level or inclined conveyor system to meet the needs of different types.
Specification - Techincal Parameter :
| Width(mm) | Length(m)/Power(kw) | Speed(m/s) | Capacity(t/h) |
| 400 | ≤12/2.2 | 12~20 /2.2~4 | 20~25/3.5~7.5 | 1.25~2.0 | 30~60 |
| 500 | ≤12/3 | 12~20/3~5.5 | 20~30/5.5~7.5 | 1.25~2.0 | 40~80 |
| 650 | ≤12/4 | 12~20/4~5.5 | 20~30/5.5~11 | 1.25~2.0 | 80~120 |
| 800 | ≤10/4 | 10~15/4~5.5 | 15~30/5.5~15 | 1.25~2.0 | 120~200 |
| 1000 | ≤10/5.5 | 10~20/5.5~11 | 20~40/11~22 | 1.25~2.0 | 200~320 |
| 1200 | ≤10/7.5 | 10~20/7.5~15 | 20~40/15~30 | 1.25~2.0 | 290~480 |
Competitive Advantages:
1. High carrying capacity and the length is customized
2. Anti-skidding design ensure that it works very well even in severe environment
3. Easy to operate and easy to maintain for it has simple structure
4. Different models for choice
| How to choose the machine suitable for you: |
| 1. What’s your throughput? Such as 5t/h,10t/h,20t/h etc. 2. What’s you need conveying horizontal distance and lifting height? Such as 5m, 10m, 20m, etc. 3. What’s material you need lifting? Such as coal, cement, stone, grain etc. Tell me those data, we can help you choose the suitable machine for you. |
| Welcome to contact us for more information , we will do my best for our friends. |
